Category : Discrete Semiconductor Products Thyristors SCRs
Product Status : Obsolete
Mounting Type : Through Hole
Package : Cut Tape (CT)
Voltage - Off State : 200 V
Series : -
Current - On State (It (AV)) (Max) : 510 mA
Supplier Device Package : TO-92 (TO-226)
Current - On State (It (RMS)) (Max) : 800 mA
Voltage - Gate Trigger (Vgt) (Max) : 800 mV
Mfr : onsemi
Current - Gate Trigger (Igt) (Max) : 200 µA
SCR Type : Sensitive Gate
Package / Case : TO-226-3, TO-92-3 Long Body (Formed Leads)
Current - Hold (Ih) (Max) : 5 mA
Base Product Number : 2N5064
Current - Non Rep. Surge 50, 60Hz (Itsm) : 10A @ 60Hz
Description : SCR 200V 800MA TO92-3
Stock : In Stock
Shipping Method : LCL, AIR, FCL, Express
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
![]() |

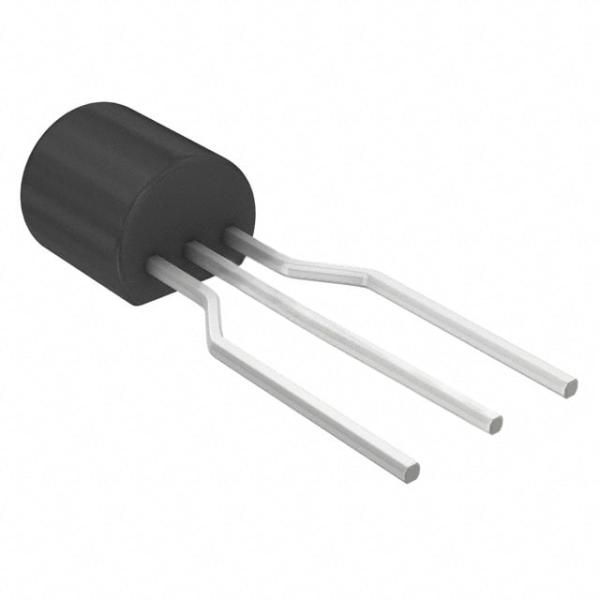

2N5064RLRA Images |
